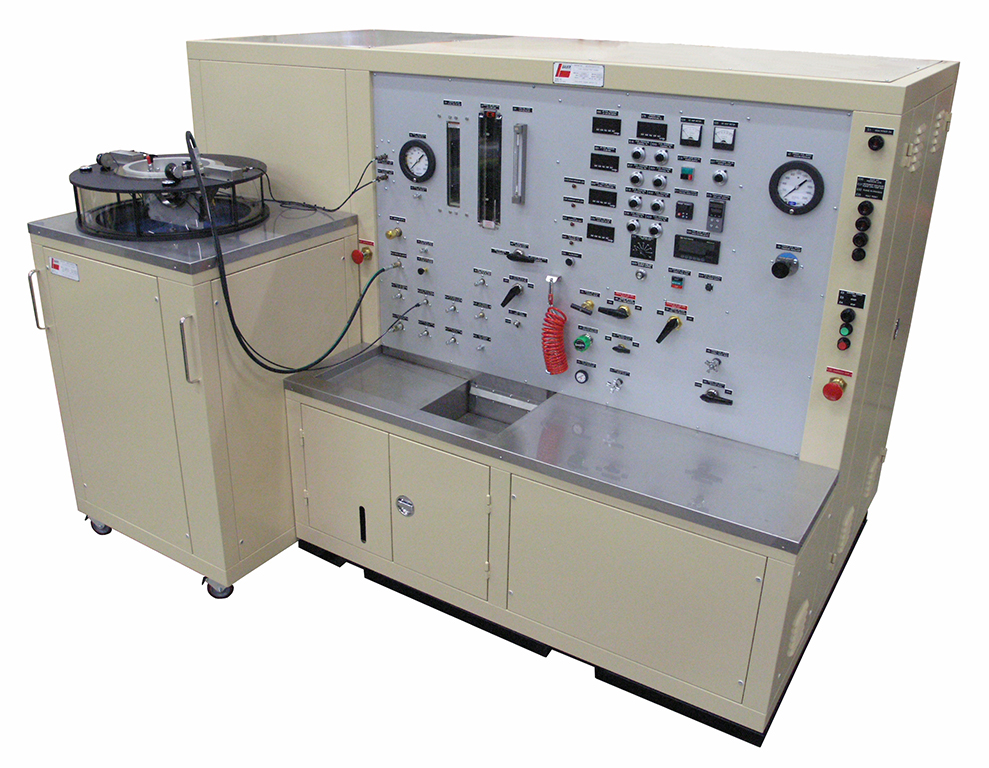

1579 Fuel Nozzle Test Stand 1
1579 Fuel Nozzle Test Stand 1
1579 Fuel Nozzle Test Stand 2
1579 Fuel Nozzle Test Stand 3

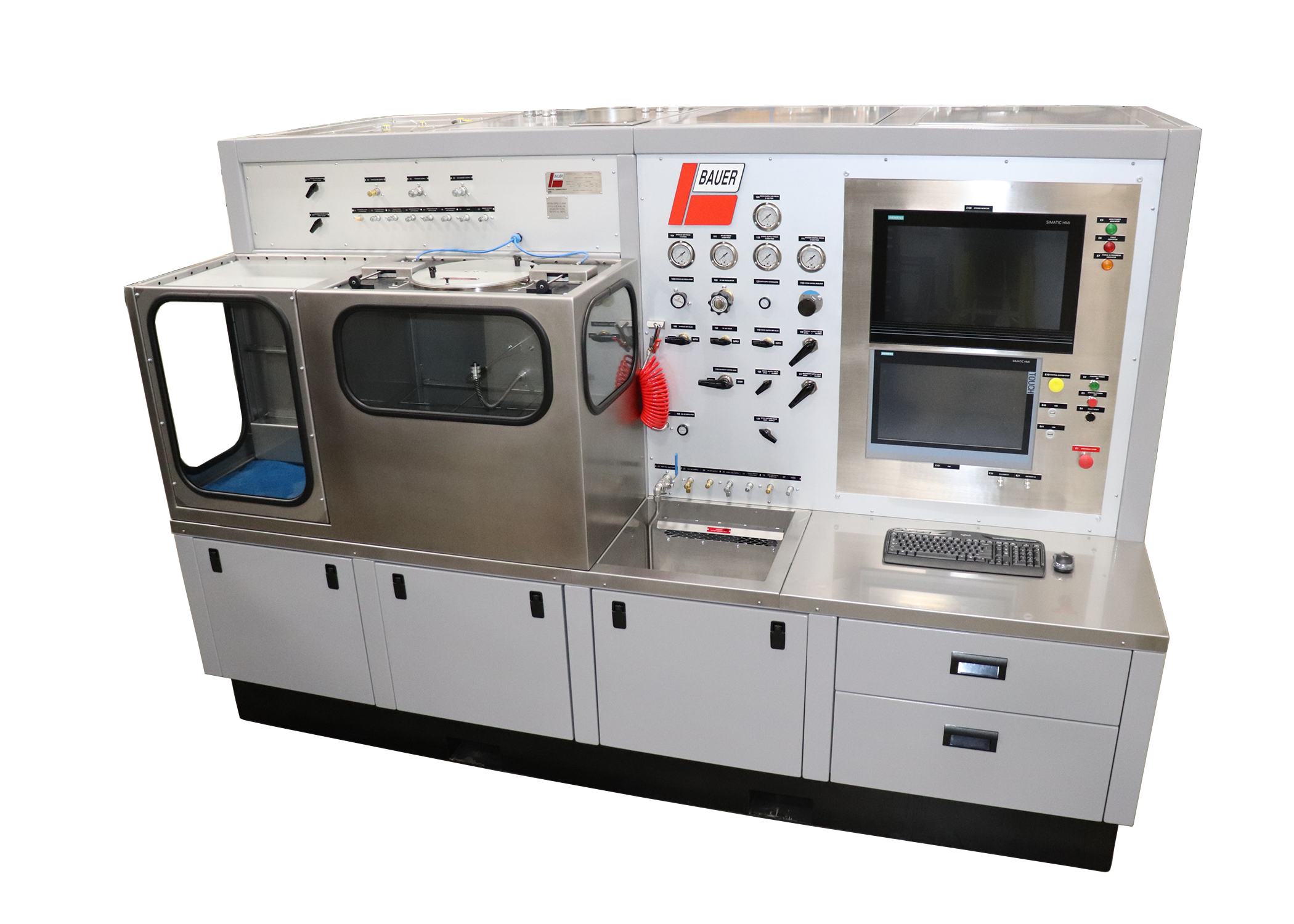

The Bauer Model 1579 Fuel Nozzle Test Stand provides an accurate means of testing a wide range of engine fuel nozzles. Nozzle-specific holding fixtures are available to support all engine capability.

  • Perform nozzle viewing, spray and skew measurement and radial patternation
  • Can be configured to support manifold testing
  • Nozzle test fixture rotation allows for viewing nozzle spray pattern and angle/skew measurements to be taken 90° apart.
  • Fiber optic light illuminates spray cone
  • Discrete digital or PC-based instrumentation (ATS3000)

Bauer has produced configurations of this equipment with various features and covering many different aircraft/engine platforms.
