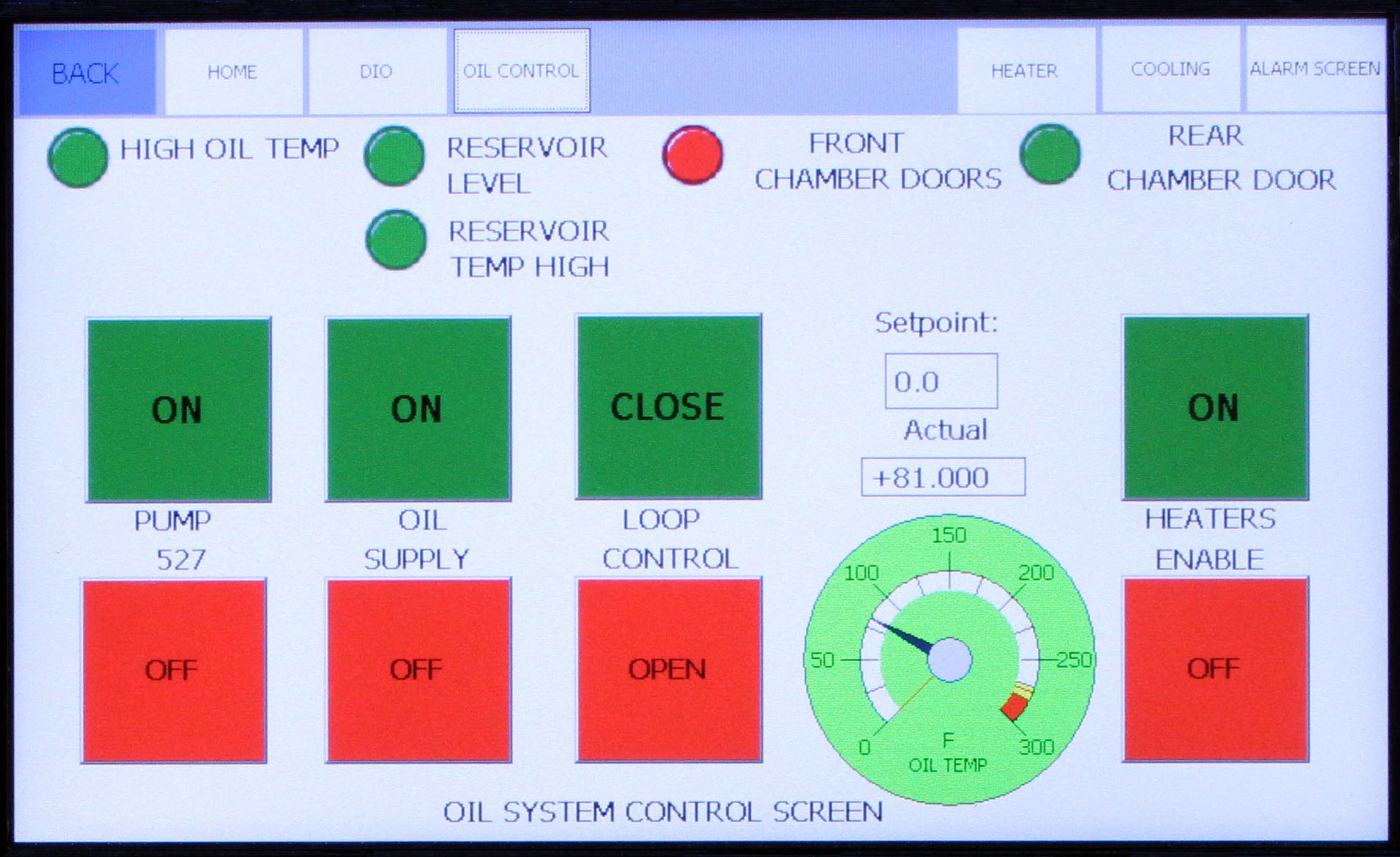

3076 Gearbox Oil Flow Test Stand Screenshot

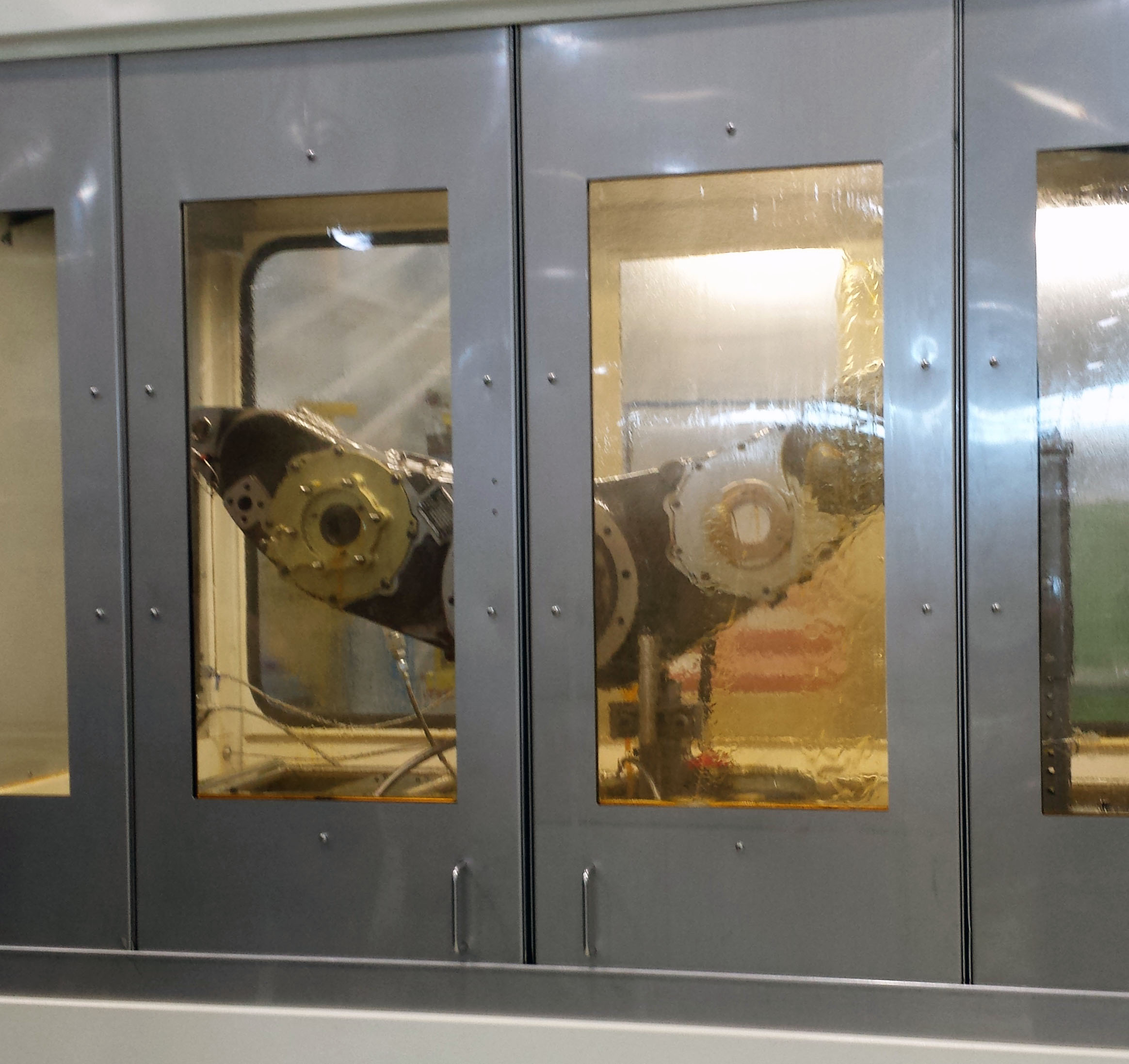

3076 Gearbox Oil Flow Test Stand Detail

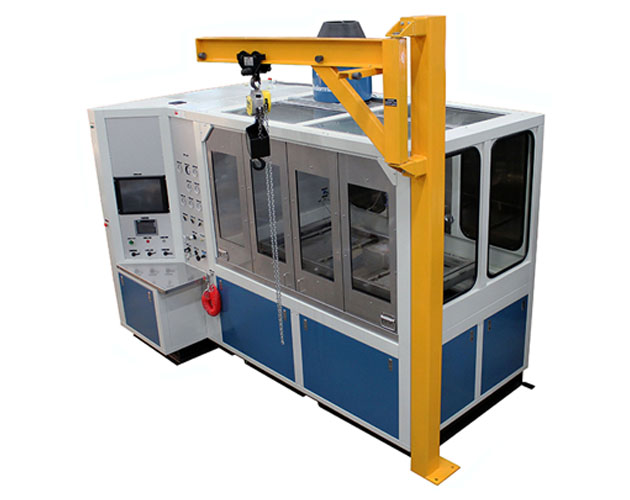

The Bauer Model 3076 Gearbox Oil Flow Test Stand is designed to test the oil nozzles of engine gearboxes utilizing Mil-L-23699 turbine oil in accordance with the applicable CMM test procedures.

  • Oil pumping system capable of supplying up to 10 GPM at pressures up to 200 PSIG
  • PLC-controlled oil temperature conditioning circuit capable of maintaining test temperatures between 95° and 275°F
  • Test cassette slides out from chamber for gearbox mounting/dressing with tooling/hoses without leaning into the test chamber

Bauer has produced configurations of this equipment with various features and covering many different aircraft/engine platforms.
