6736 Linear Hydraulic Component Test Stand
6736 Linear Hydraulic Component Test Stand

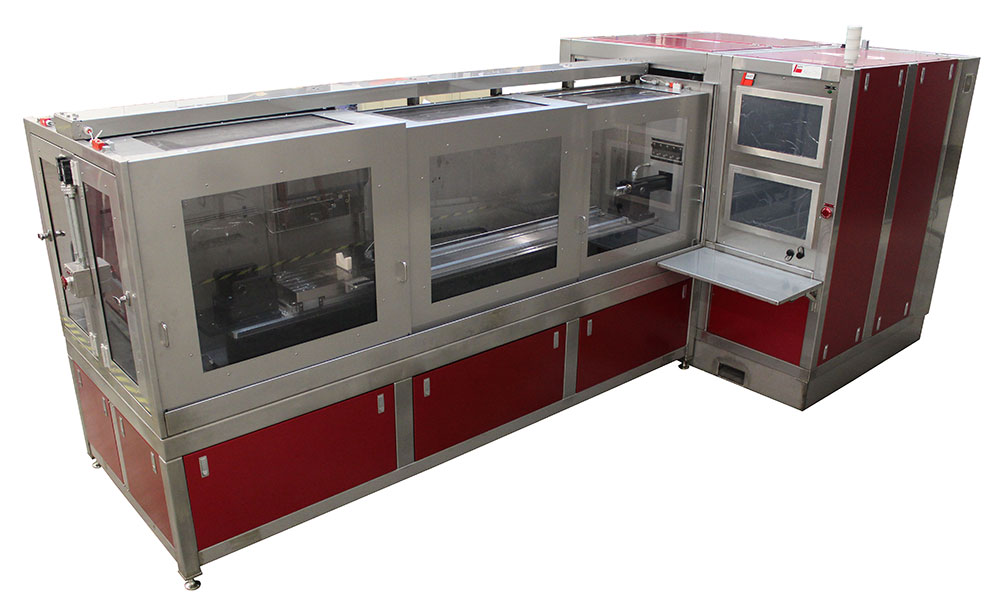

The Bauer Model 6676 Linear Hydraulic Components Test Stand is designed to meet a wide range of requirements to test non-rotating components. Maximum flow capability is 60 GPM and maximum pressure capability is up to 6000 PSI. The test stand is designed and configured ergonomically for the operator and operates quietly.

  • Skydrol or mineral oil fluid compatibility
  • Static testing up to 20,000 PSI
  • Directional control (cycle circuit)
  • Manual or semi-automated operation
  • Low pressure drop quick disconnect for easy UUT connection
  • Various models of the test stand are available, depending on specific application
    • Landing gear actuators
    • Flight control units
    • Servo valves
    • Servo actuators
    • Thrust reverser actuators
  • Expandable for servo valve testing – (3 way) and (4 way) 5-15 GPM and 15-30 GPM (modular concept)
  • Frequency response for servo valve testing
  • Supply and return line filtration ensure fluid cleanliness
  • Supplied by Hydraulic Power Unit (optional built-in supply)
  • Stainless steel or painted (depending on fluid type)
  • ATS3000 advanced test software with data acquisition and control system

Bauer has produced configurations of this equipment with various features and covering many different aircraft platforms.
