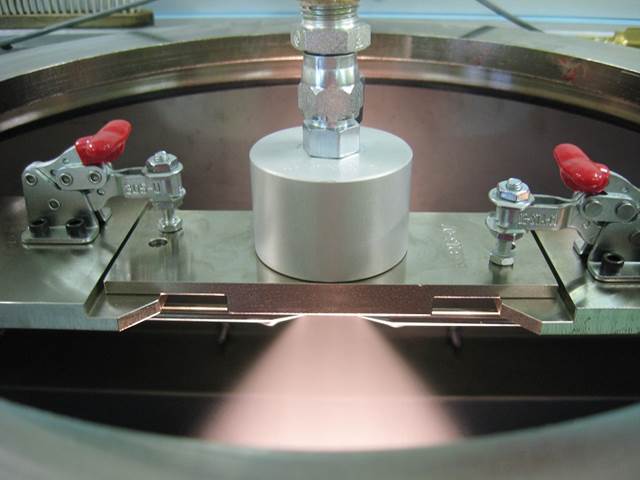

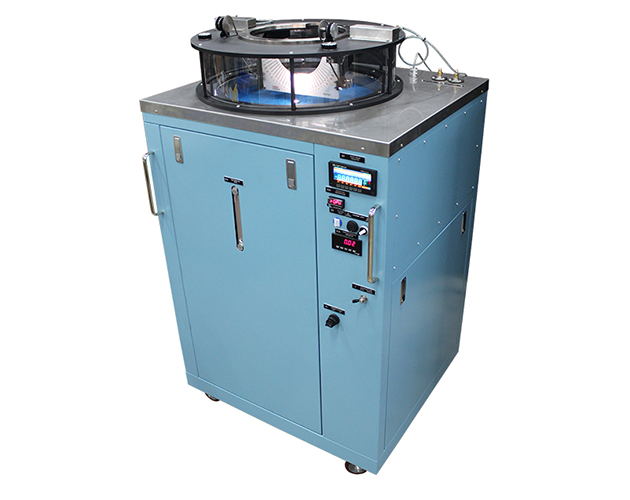

1059 Portable Fuel Nozzle Test Cart 1
1059 Portable Fuel Nozzle Test Cart 1
1059 Portable Fuel Nozzle Test Cart 2
1059 Portable Fuel Nozzle Test Cart 3

The Bauer Model 1059 Portable Fuel Nozzle Test Cart provides a flexible means of testing a wide range of engine fuel nozzles. Nozzle-specific holding fixtures are available to support all engine capability.

  • Perform nozzle viewing, spray and skew measurement and radial patternation
  • Typically used with a Bauer Fuel Nozzle Test Stand or other fuel supply
  • Nozzle test fixture rotation allows for viewing nozzle spray pattern and angle/skew measurements to be taken 90° apart
  • Fiber optic light illuminates spray cone

Bauer has produced configurations of this equipment with various features and covering many different aircraft/engine platforms.
